The Scanmatik 3 Pro is a professional multi-protocol Pass-Thru interface for OEM diagnostics, ECU programming, calibration updates, and automotive tuning. Designed for workshops, ECU specialists, and professional tuners, it supports a wide range of American, European, Japanese, Korean, Chinese, and Russian vehicles.
With support for SAE J2534-1/2 and TMC RP1210, the Scanmatik 3 Pro can be used with compatible OEM service applications and popular third-party ECU programming software. Modern CAN FD and DoIP support provides access to newer vehicle platforms, while compatibility with K-Line, J1850, Chrysler SCI, and other legacy protocols makes the tool suitable for older vehicles as well.
Why choose the Scanmatik 3 Pro?
Modern workshops often need separate interfaces for OEM diagnostics, ECU reflashing, tuning, and older vehicle protocols. The Scanmatik 3 Pro combines these capabilities in one compact professional interface, helping reduce the number of tools required for everyday diagnostic and programming work.
USB and wireless connectivity provide additional flexibility when working with a PC, tablet, or compatible smartphone. Whether you are carrying out dealer-level diagnostics, updating an ECU calibration, or using professional tuning software, the Scanmatik 3 Pro provides a stable connection between the vehicle and the selected application.
Key Benefits:
- Professional J2534 and RP1210 support
- Compatible with SAE J2534-1/2 and TMC RP1210 applications for OEM diagnostics and ECU programming.
- CAN FD and DoIP compatibility
- Supports modern vehicle communication protocols used on the latest ECU and diagnostic platforms.
- Extensive legacy protocol coverage
- Includes support for K-Line, J1850 VPW/PWM, Chrysler SCI, and additional communication protocols.
- Compatible with professional tuning software
- Designed for use with compatible applications such as PCMflash, BitBox, Combiloader, MDFlasher, and other J2534 or RP1210 software.
- Special software integrations
- Provides application-specific functions such as ignition-state emulation for VAG ODIS and K-Line multiplexing for compatible Mercedes-Benz diagnostic software.
- USB and wireless operation
- Offers flexible communication options for workshop PCs, tablets, and compatible mobile devices.
- Built for professional workshop use
- A compact and versatile interface for diagnostics, ECU reflashing, calibration work, and mixed-fleet servicing.
Applications
- OEM-level vehicle diagnostics with compatible manufacturer applications
- ECU software updates, programming, and reflashing
- Professional ECU tuning and calibration workflows
- Vehicle module setup and service functions
- Diagnostics and programming on legacy and current vehicle platforms
- Mixed-fleet workshop applications
Compatibility and Software
- Pass-Thru standards: SAE J2534-1, SAE J2534-2, and TMC RP1210
- Operating systems: Windows software and Android application
- Connection options: USB and integrated wireless connectivity
- Third-party software: Compatible with supported J2534 and RP1210 applications after installation of the required drivers
Compatible tuning and flashing applications may include: PCMflash, BitBox, Combiloader, MDFlasher, and other software supporting the Scanmatik 3 Pro or standard J2534/RP1210 interfaces.
Included diagnostic software modules: VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, and OBD2.
Technical Specifications
- K-Line and ISO channels: 13 multiplexed ISO 9141-2, ISO 14230-2 K-Line, and Chrysler SCI channels
- K-Line OBD routing: Multiplexed to J1962 OBD pins 1, 2, 3, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15
- J1850: 1 VPW/PWM channel
- CAN: 5 CAN 2.0 and CAN FD channels
- CAN routing: Multiplexed to OBD pin pairs 6-14, 3-11, 12-13 with polarity switching, 1-9, and 2-10
- Single-Wire CAN: 1 GM-compatible channel
- DoIP: 1 integrated 10/100BASE-TX Ethernet channel
- Programming voltage: 5 to 24 V FEPS generator
- FEPS routing: Multiplexed to OBD pins 6, 8, 9, 11, 12, 13, and 14
- Auxiliary programming voltage: Separate AUX output through the DB-25 connection
- Wireless standard: IEEE 802.11 b/g/n
- Dimensions: 97 × 75 × 22 mm

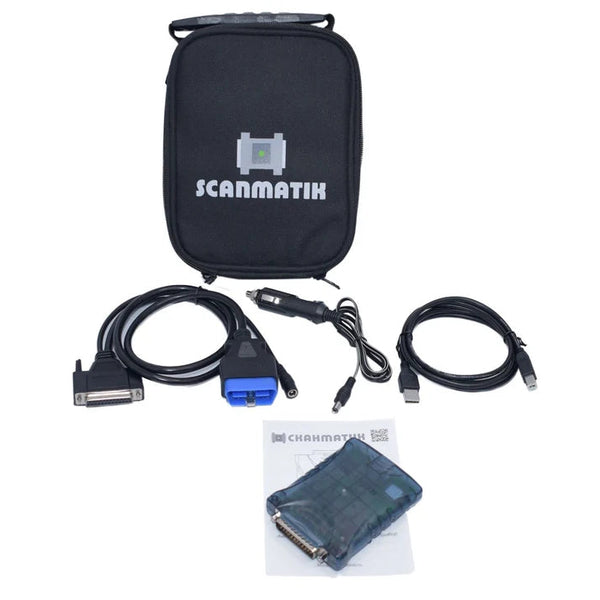

In the Box
- Scanmatik 3 Pro Pass-Thru interface
- Windows drivers and software
- Android application
- USB cable
- Documentation
Important Information
- Software compatibility and available functions depend on the vehicle, ECU, software version, license, and selected application.
- Third-party tuning, OEM diagnostic, and programming software may require separate licenses or subscriptions.
- The AUX-type main cable required for banana-jack programming-voltage output is sold separately unless specifically listed as part of the selected package.
- Always verify vehicle and software compatibility before carrying out ECU programming or control-module updates.
